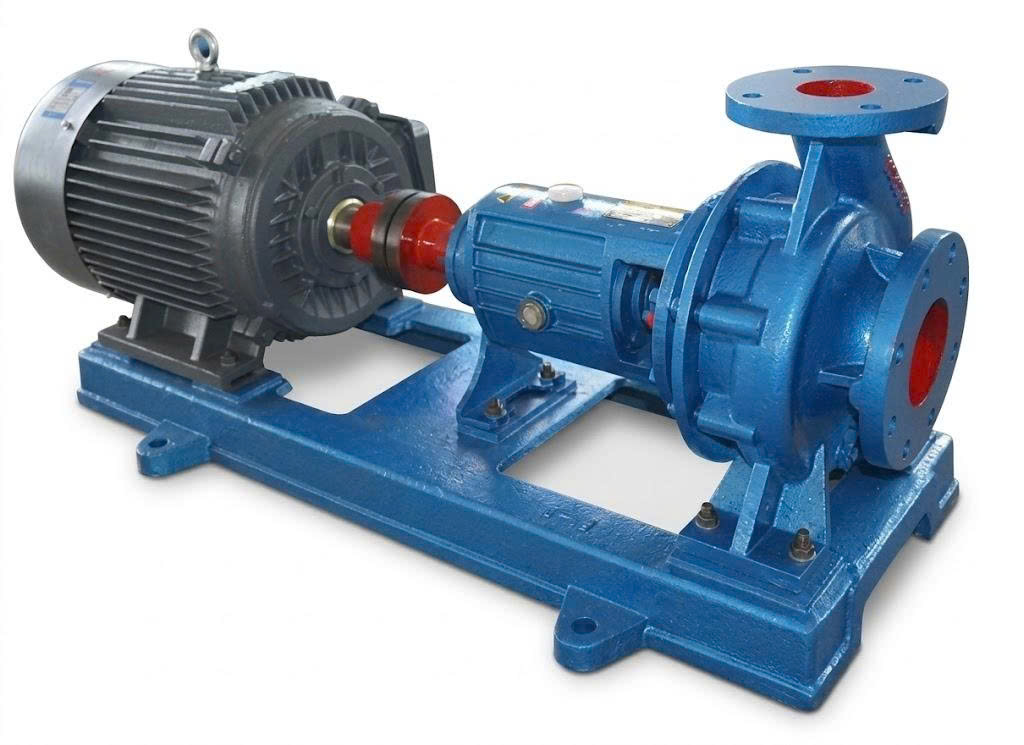

Horizontal centrifugal pump

Centrifugal Pump for Petroleum – Horizontal Shaft Centrifugal Pump

VINAPECO specializes in supplying centrifugal pumps designed for petroleum products and flammable chemicals. Explosion-proof motors are available for use in the petroleum and oil & gas industries.

Technical Specifications:

• Pump body material: cast iron (CI), ductile iron (DI)
• Impeller: stainless steel 304/316/420, cast brass
• Pump shaft: stainless steel 420 / steel alloy (ZG500)
• Flow capacity: Q = max 600 m³/h
• Head: H = max 140 m
• Seal: mechanical seal / Teflon
• NPSH: upon request

Explosion-Proof Motor:

• Power supply: 380V/415V / 3 Phase / 50Hz / IP55
• Motor power: max 180 kW
• Speed: 1450 rpm / 2900 rpm
• Insulation class: F
• Explosion-proof standard: Exd II BT4

Connection Standards:

• Flange: ANSI 150 RF / JIS / DIN

Origin: Taiwan, Korea, Italy, USA

For consultation regarding centrifugal pumps for petroleum, please contact us at the provided address.
