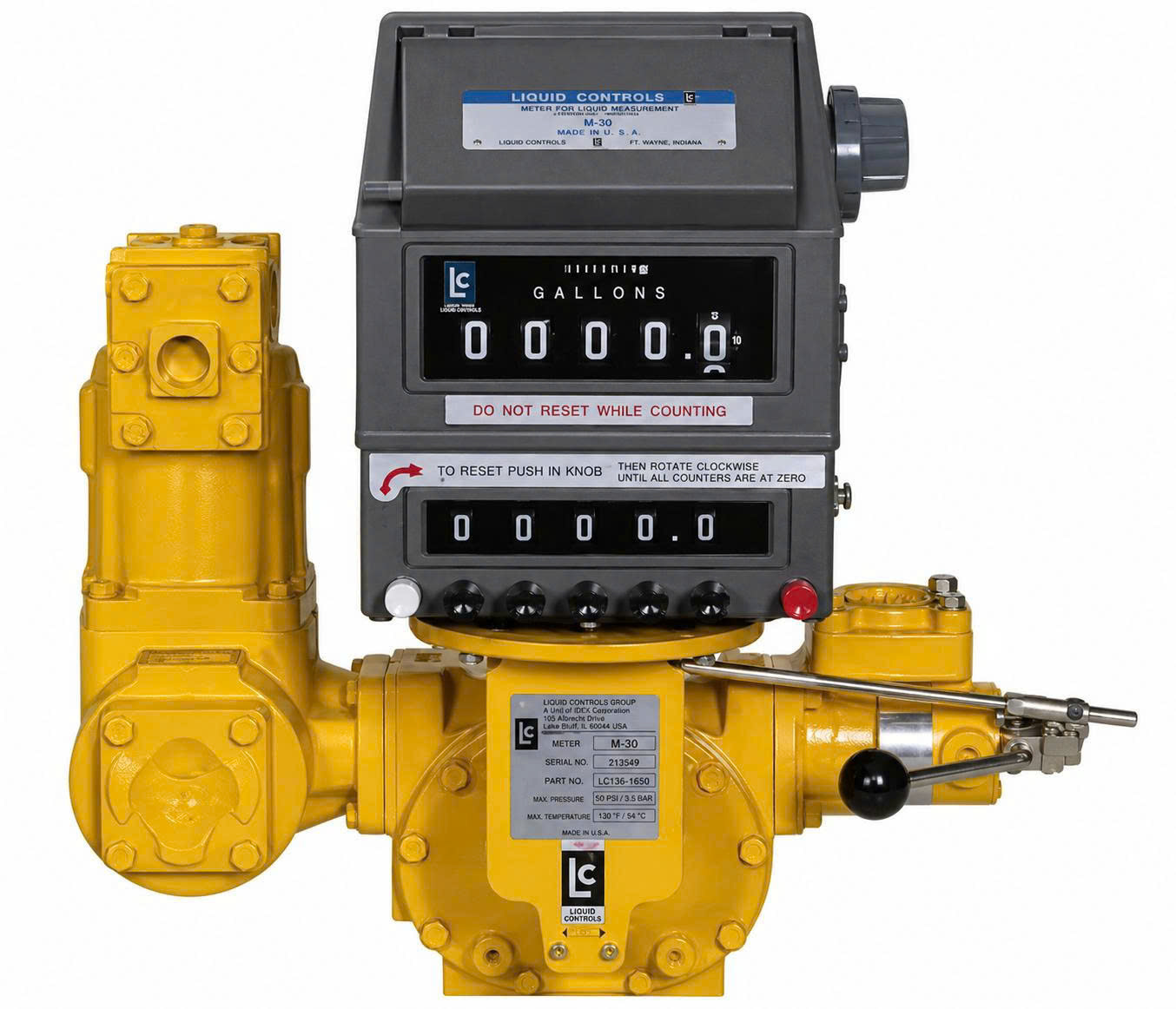

Flow meter – Series MA

1. Product Overview

The Series MA flow meter is a high-precision mechanical volumetric measuring device, specialized for high-value liquids such as gasoline, diesel, kerosene, and aviation fuel. Based on the principle of Positive Displacement, the Series MA ensures extremely stable measurement even under continuously changing flow conditions.

2. Standard Technical Specifications

3. Why Series MA is the Standard for Fuel Measurement

In the petroleum industry, even small errors can lead to significant economic losses. Series MA addresses this issue through:

• Direct measurement principle: Measures the actual volume of liquid passing through the chamber, unaffected by viscosity or pressure variations.
• Outstanding mechanical durability: No metal-to-metal contact inside the measuring chamber, minimizing wear and maintaining accuracy for decades.
• No straight pipe requirement: Unlike turbine or magnetic meters, Series MA can be installed immediately after an elbow or valve without affecting measurement accuracy.

4. Key Features

• Stepless Calibrator: Allows extremely fine error adjustments to restore absolute accuracy after long-term use.
• Versatile Display Options: Choose between a mechanical register with large, easy-to-read digits or a pulser for computer connectivity.
• Low Pressure Loss: Optimized chamber design reduces flow resistance, enabling pumps to achieve maximum flow rates.
• Self-lubrication: Moving parts are lubricated by the fluid itself (fuel), ensuring smooth operation with minimal noise.

5. Practical Applications

• Fuel tank trucks: Installed on tanker trucks to control the volume delivered to retail stations.
• Aviation fueling: Measuring jet fuel (Jet A1) with strict requirements for cleanliness and accuracy.
• Internal fuel depots: Managing diesel distribution for construction fleets, ships, or backup generators.
• Industrial filling systems: Integrated into highly automated loading and dispensing systems.
