| Code | : SFFP |
| Stock | : In stock |
| Guarantee | : 1 years |
| Price | : Contact |
| View | : 3571 |
Address: 140/28/35, Vuon Lai Street, An Phu Dong Ward, Ho Chi Minh City
Hotline: 0966165029 - Mr. Tài
Email: [email protected]

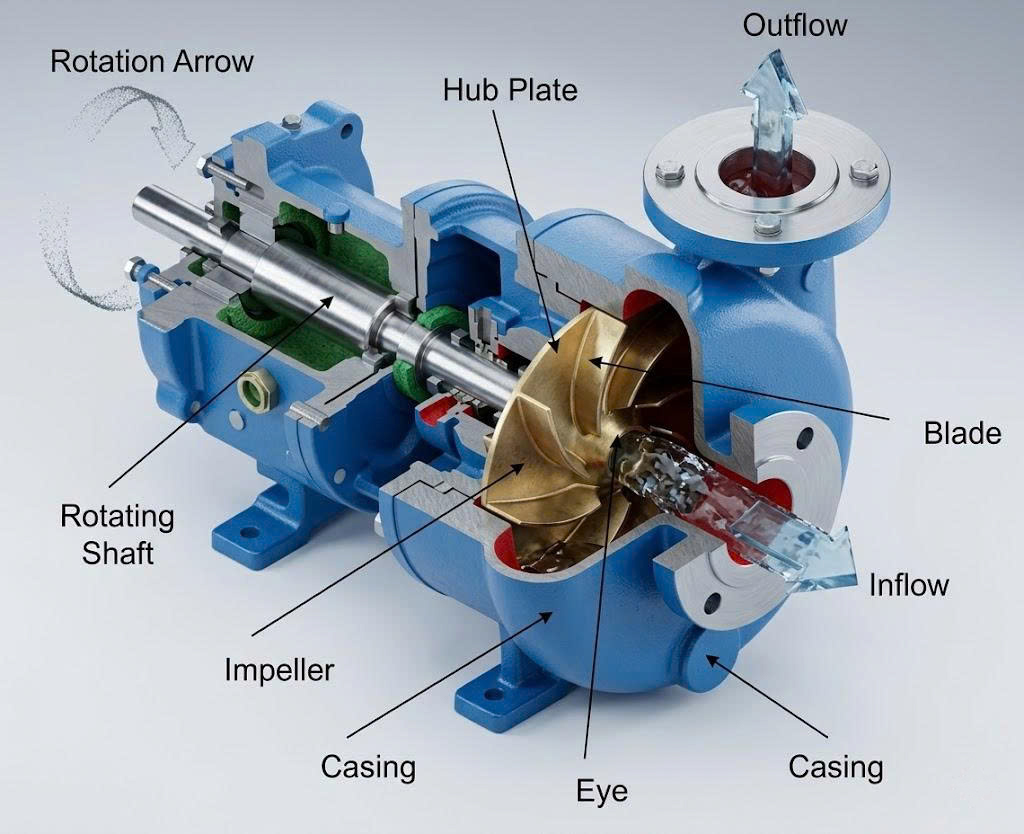

A single-stage fire pump is designed with only one rotating impeller. The pump can be equipped with either a single suction port or a double suction port. Its main components include: pump casing, pump housing, external motor-driven shaft, impeller, bearings, mechanical seal, and packing gland. Single-stage pumps have a simple structure, making them easy to maintain and service.
| Feature | Details |
|---|---|
| Model | HPF Series |
| Pump body material | Cast iron, ductile iron, stainless steel |
| Flow capacity | Q = 800 m³/h |
| Head | H = 180 m |
| Impeller | Ductile iron, bronze, steel, stainless steel |
| Shaft material | Steel, SS420, SS304, SS316 |
| Mechanical seal | Mechanical seal (SiC), Teflon/NBR O-ring |
| Bearings | NSK (Japan) |
| Motor | 220V / 380V / IP55 |
| Motor standard | IEC |
| Alternative drive | Diesel engine, water-cooled or air-cooled |
| Design & manufacturing standards | EN733, ISO 2858 |
| Connection standards | JIS, DIN, ANSI |
Contact us for the best price.
