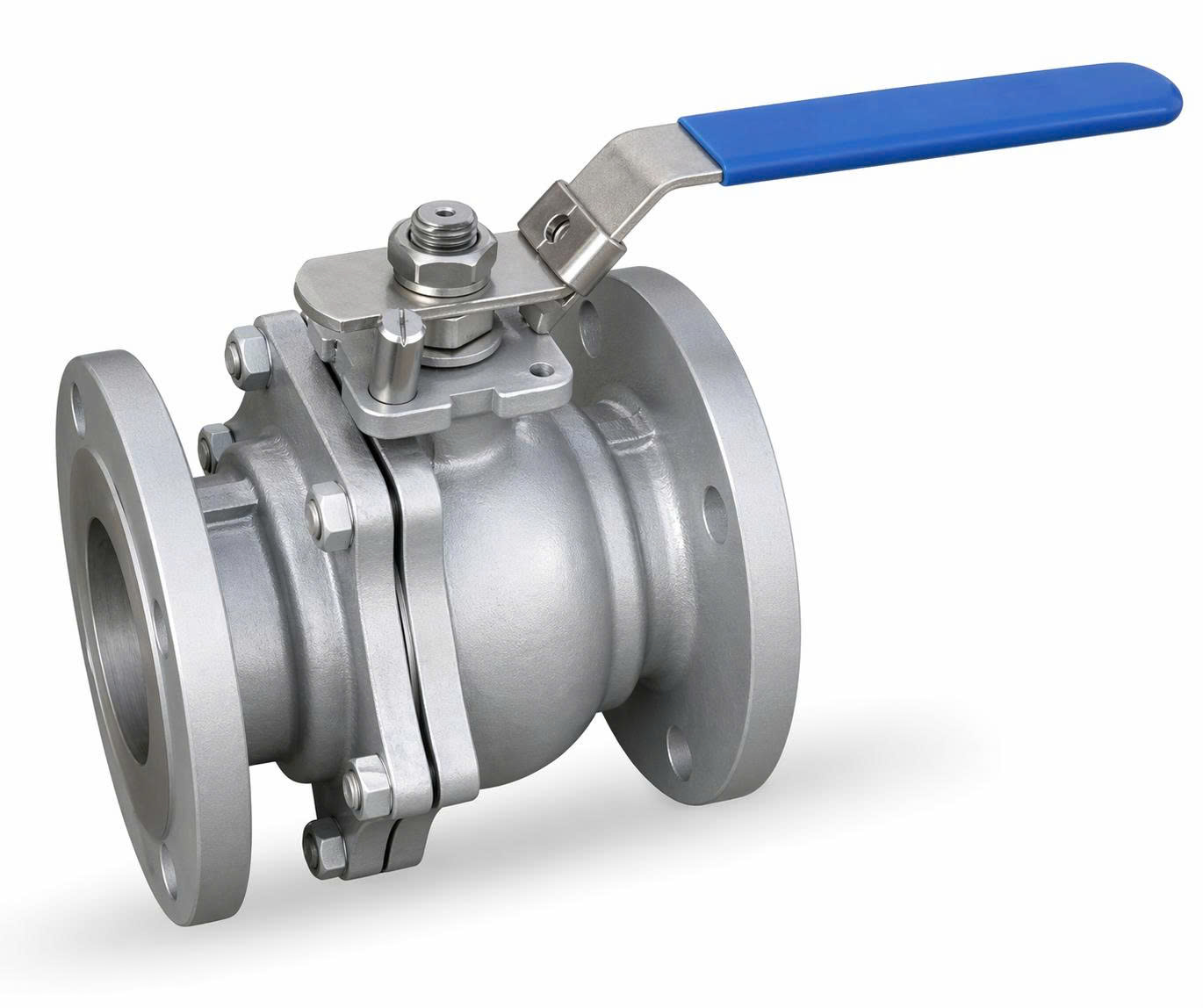

Ball valve

Ball Valve is a mechanical device that uses a rotation angle of less than or equal to 90° to open, close, or regulate the flow of fluid in a piping system. The valve disc is a ball made of metal or plastic, drilled through the center.

Technical Specifications:

• Connection & manufacturing standards: API 6D, BS535, API 608, API 602…
• Pressure test standards: API 598, API 6D
• Pressure ratings: 150 lb, 300 lb, 600 lb, 1500 lb or PN10 ~ PN160 or JIS 10K ~ JIS 40K
• Face-to-face dimensions: ASME 16.10, API 594…
• Valve size: ½” ~ 24” or DN15 ~ DN600
• Body materials: DL, CL, Bronze, WCB, A105, CF8 (304), CF8M (316), CF3 (304L), CF3M (316L), etc.
• Operation: lever, handwheel, gearbox (for large-size valves), electric actuator…
• Connection types: RF, NPT, EN1092, DIN, Wafer, BSP…
• Applications: liquefied gas, petroleum, fire protection systems…
• Origin: USA, Taiwan, Italy, Korea…
