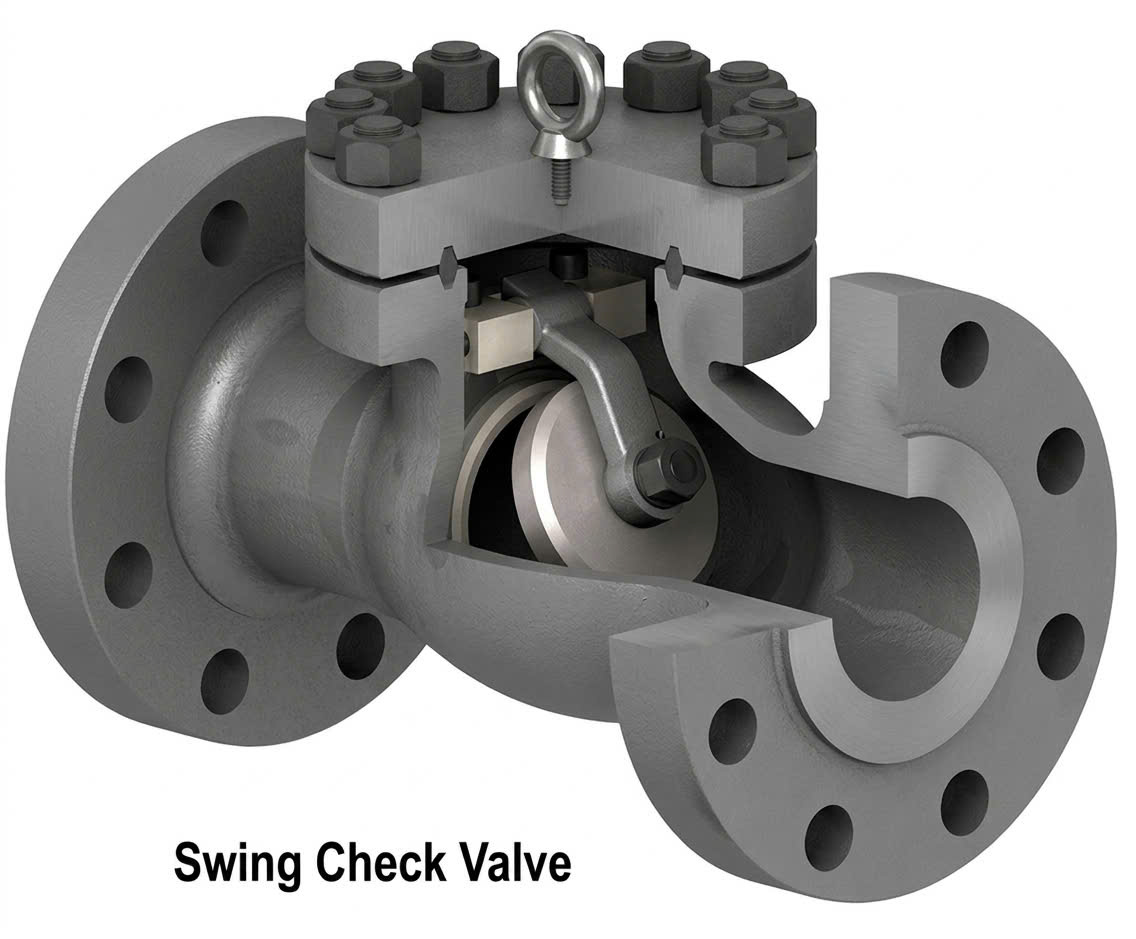

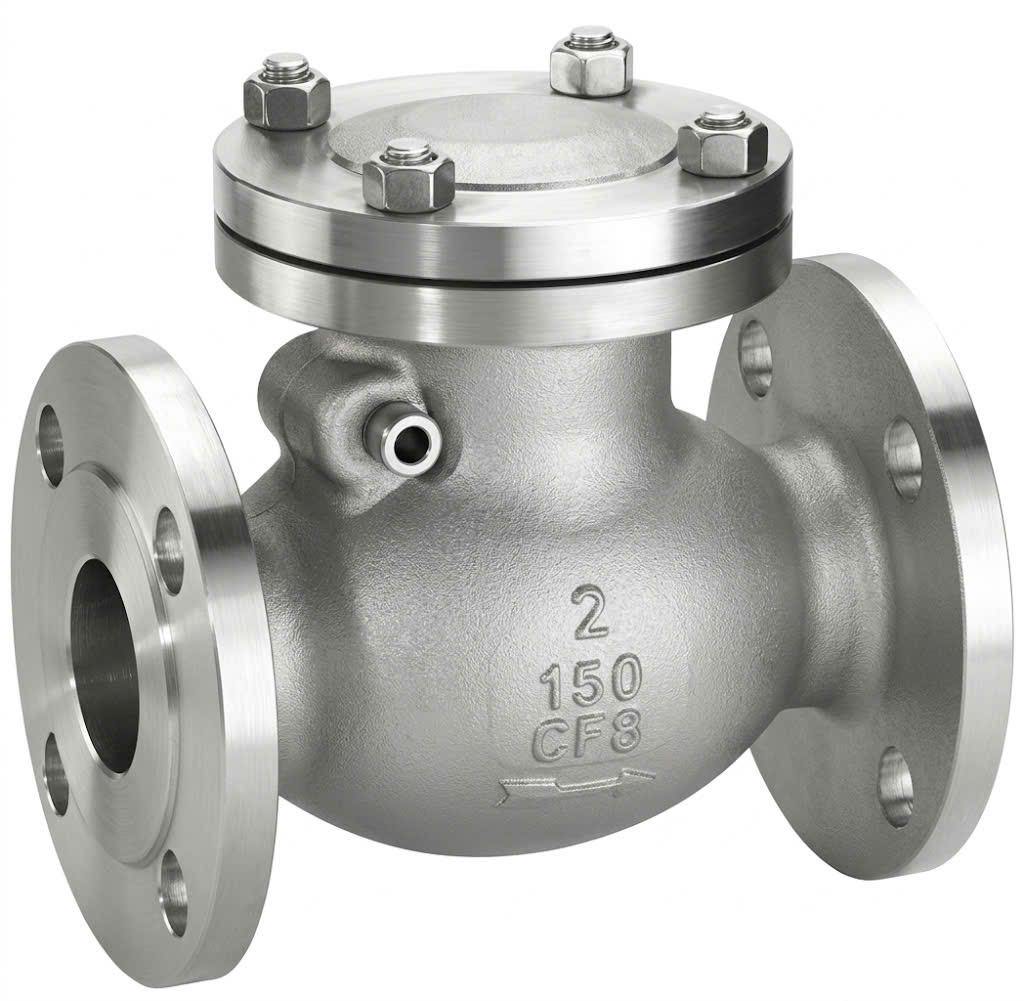

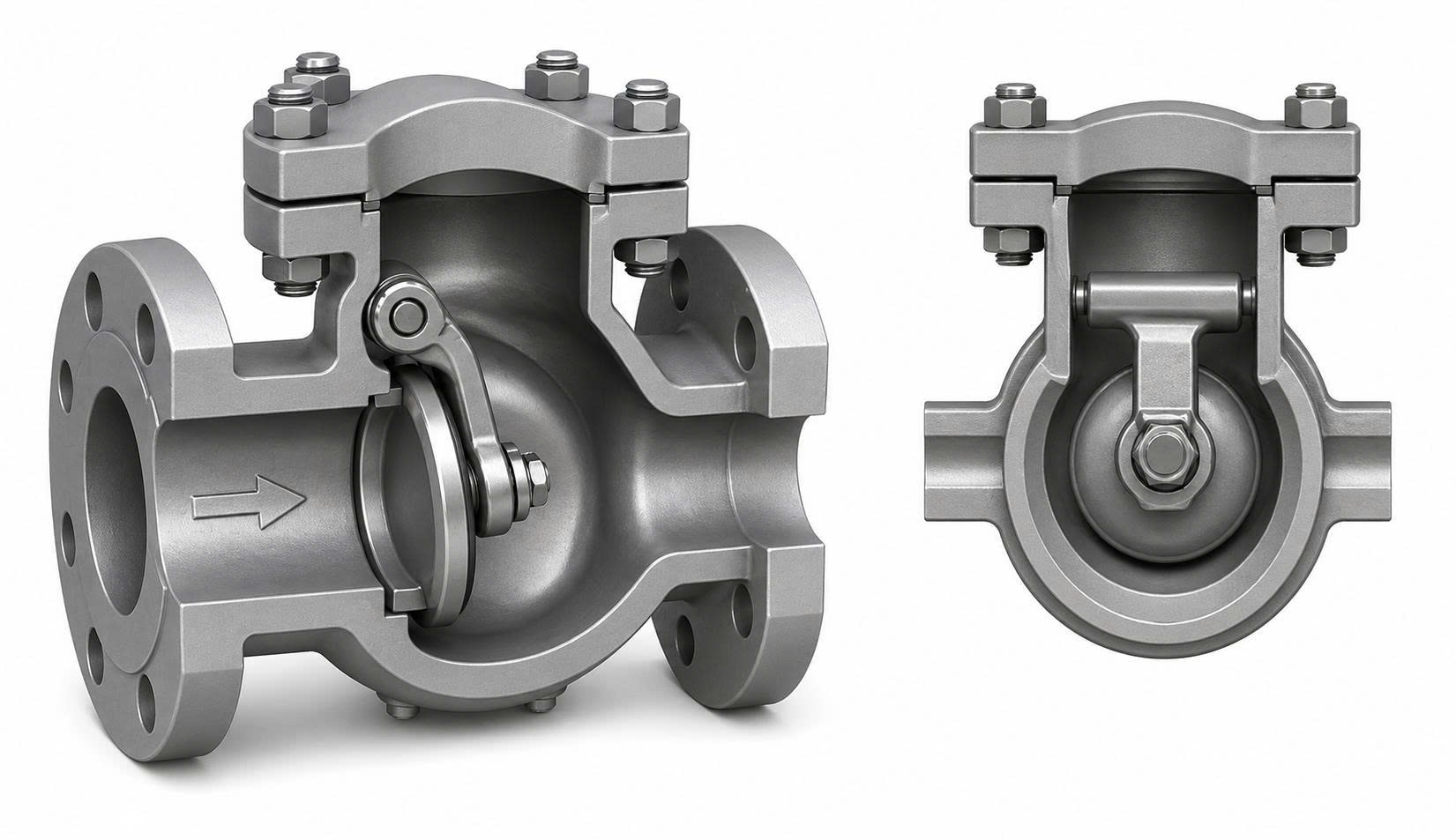

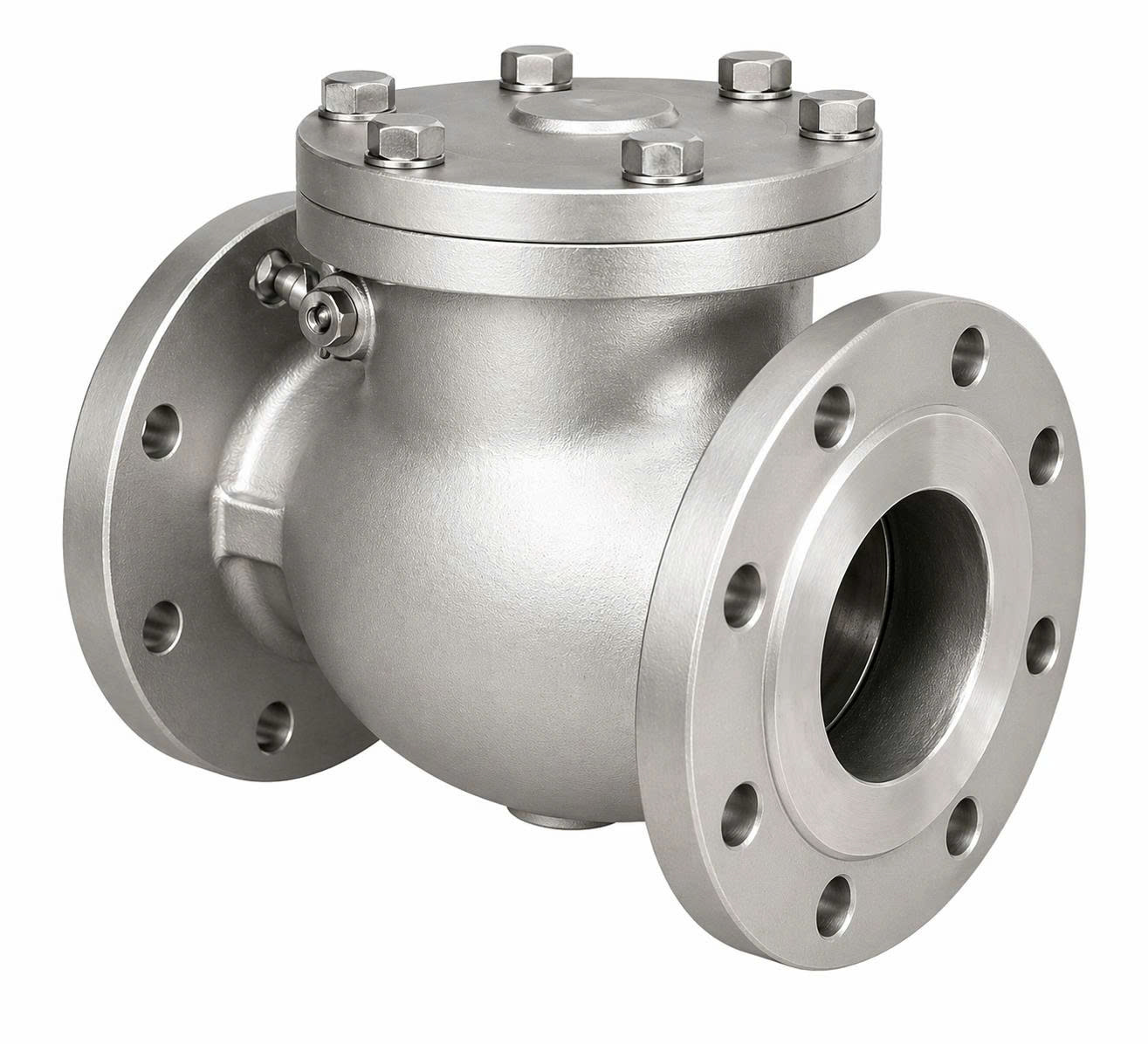

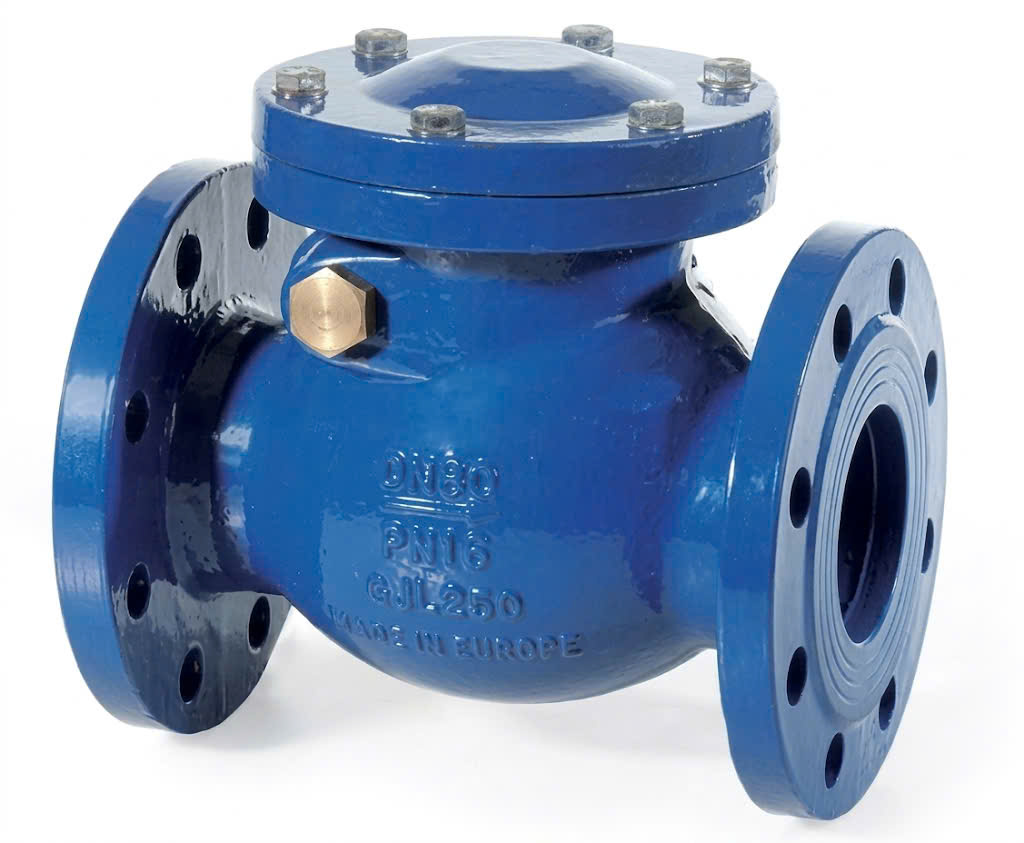

Swing check valve

Swing Check Valve is a device that allows fluid to pass through the valve opening in one specific direction and prevents or blocks the fluid from flowing backward.

Technical Specifications:

• Design & manufacturing standards: API 1868, API 602, ASME B16.34, GB/T12236, API 594…
• Pressure test standards: API 598, API 6D
• Pressure ratings: 150 lb, 300 lb, 600 lb, 1500 lb or PN10~PN160 or JIS 10K ~ JIS 40K
• Face-to-face dimensions: ASME 16.10, API 594…
• Flange dimensions: ASME 16.5, ASME B16.47…
• Valve size: ½” ~ 24” or DN15 ~ DN600
• Body materials: DI, CI, Bronze, WCB, A105, CF8 (304), CF8M (316), CF3 (304L), CF3M (316L), etc.
• Connection types: RF, NPT, BS4504, ANSI B16.1…
• Applications: liquefied gas, petroleum, fire protection systems, …
• Origin: USA, Italy, Taiwan, Korea, …

Contact us for the best price.
