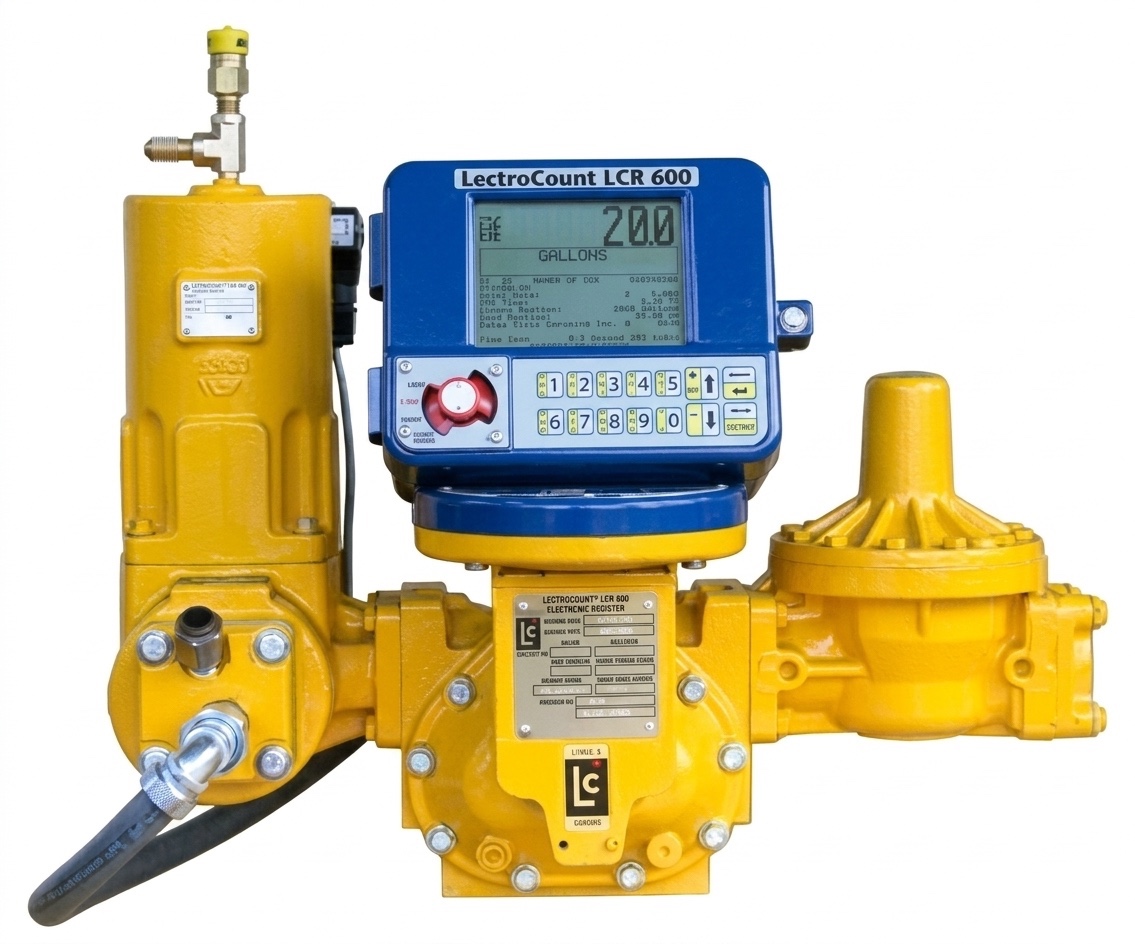

PD flow meter – M ( Series ( Electronic rigister )

Flow Meter (Model M / MA Series)

The M (MA) Series Flow Meter includes the following sizes:

• M5: Size 1-1/2″ or 2″ – Flow rate: 227 L/min
• M7: Size 1-1/2″ or 2″ – Flow rate: 380 L/min
• M10: Size 2″ – Flow rate: 550 L/min
• M15: Size 3″ or inlet 3″ / outlet 2″ – Flow rate: 760 L/min
• M30: Size 3″ or 4″ – Flow rate: 1100 L/min
• M40: Size 4″ – Flow rate: 1700 L/min
• M60: Size 4″ or 6″ – Flow rate: 2270 L/min
• M80: Size 4″ or 6″ – Flow rate: 3228 L/min

Technical Specifications:

• Working pressure: 10.5 bar (equivalent to 150 PSI)
• Body material: Aluminum alloy, stainless steel (for chemical applications)
• Temperature range: -40ºF to 160ºF (-40ºC to 71ºC)
• Accuracy: 0.1% – 0.15%
• Repeatability: 0.03% – 0.05%
• Seals: Buna-N, Viton, Teflon (PTFE)
• Measurement units: Liters or Dekalit
• Connection standard: NPT (ANSI 150 RF upon request)

Series MA: Designed for Gas/LPG applications requiring higher standards.

Applications: Petroleum, Gas/LPG, and chemical industries.
