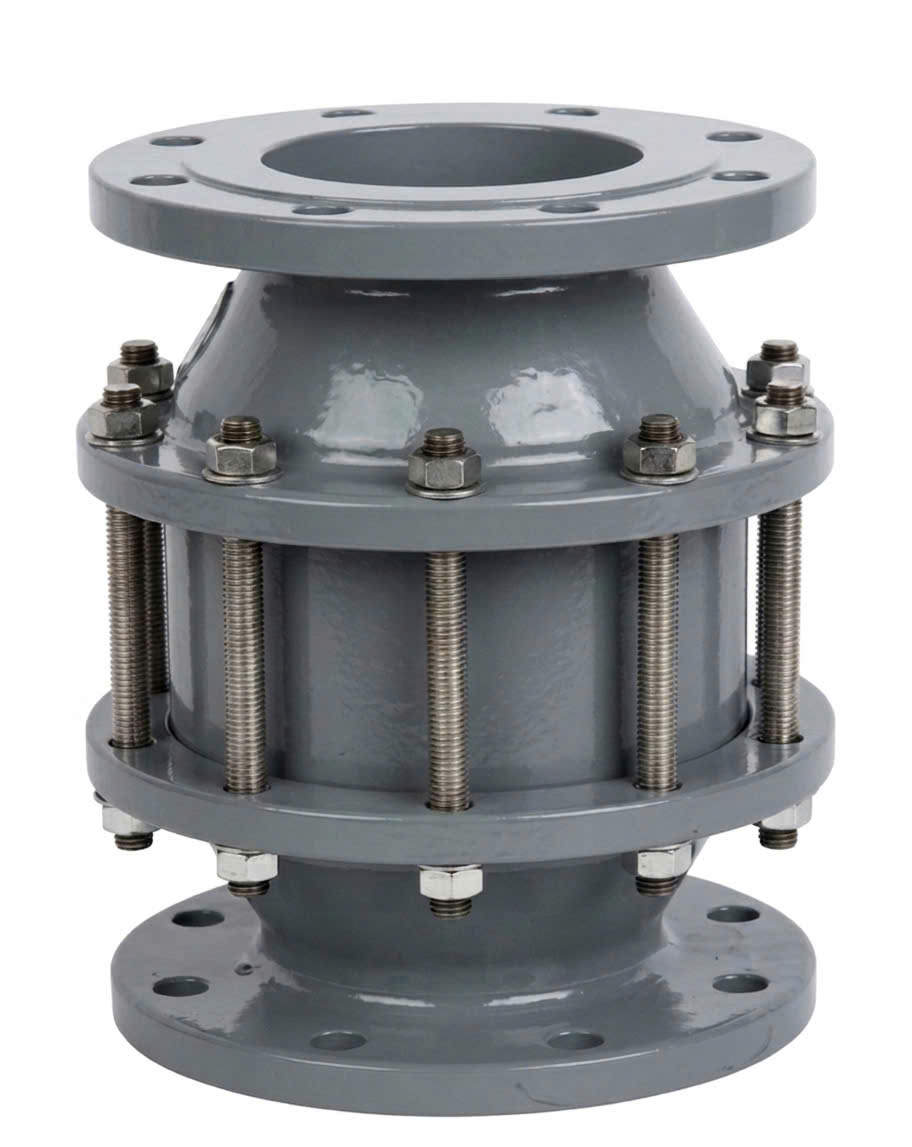

Flame arrester for pipeline

Flame Arrester – Protection Device

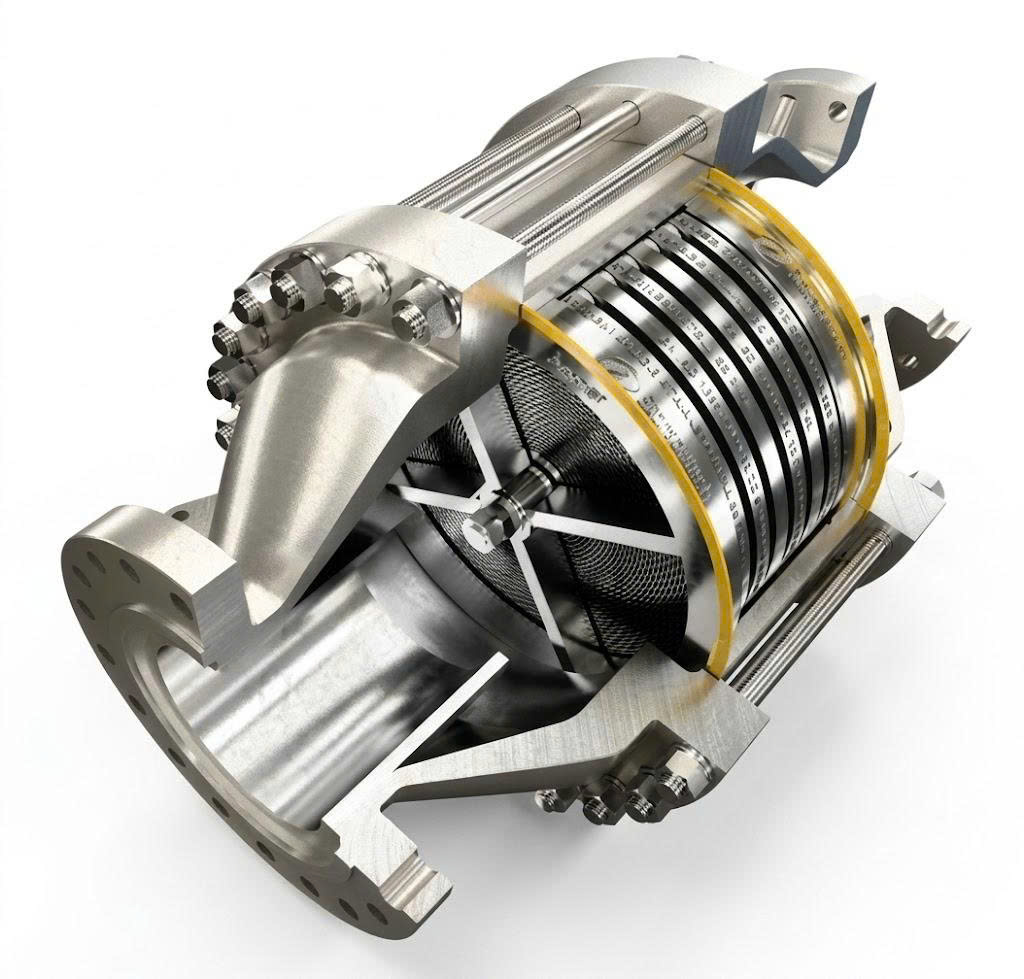

A flame arrester is a safety device designed to protect and prevent flames or lightning strikes from penetrating or flashing back into the piping system, which could otherwise generate high temperatures and cause explosions.

Technical Specifications

• Model: PFAC (Cast Steel A216 WCB), PFAS (SS304/SS316)
• Gasket/Seal: SS304/SS316
• Spark Arresting Mesh: SS304/SS316
• Bolts & Nuts: SS304
• Anti-corrosion Coating: Epoxy
• Design Standards: API2000 / EN12874
• Explosion-proof Group: BS5501, IIA, IIB, IIC
• Temperature: ≤ 160°C
• Pressure: 6 bar – 50 bar
• Size Range: DN25 – DN500
• Flange Connection Standards: ANSI150RF, JIS

👉 See detailed drawing here: DRAWING FLAME ARRESTER
