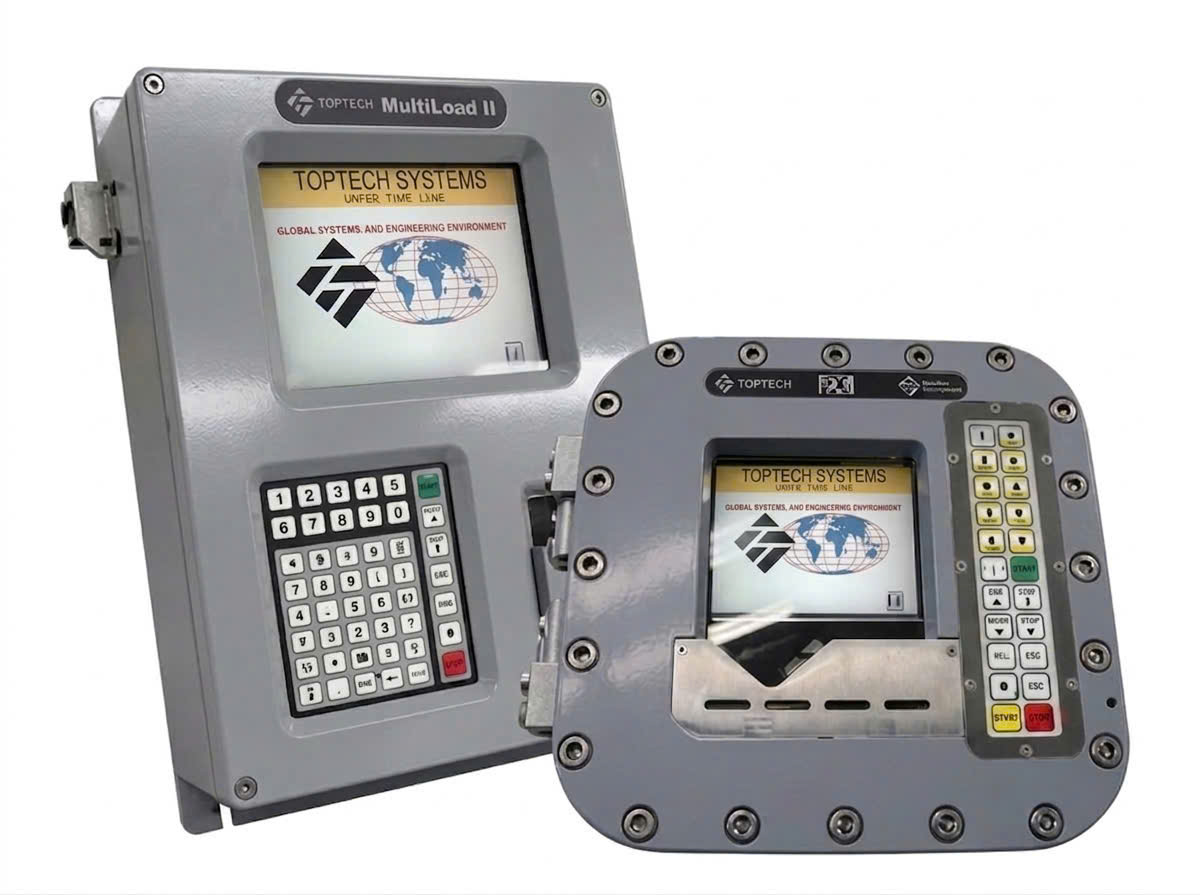

Batch controller

Fuel Consumption Monitoring Device

This is a measuring tool used to monitor and control fuel consumption automatically with high accuracy thanks to its sensor features.

Technical Specifications:

• Temperature: -25°C to 60°C (up to -40°C with optional heater)

Digital I/O Ports:

• Digital I/O Count: 13
• A/C Output (5): +85–250 Vrms, 0.5A
• DC Input (5): +5–30 Vdc
• Dual Channel Flow Meter Input: 0–5000 Hz
• Single Channel Flow Meter Input: 0–10 KHz
• Three inputs for miscellaneous signals
• DC Outputs (3): +0–30 Vdc, 0.6A
• +12 Vdc supply for pre-amps/pulsers, 2W, isolated

Analog I/O Ports:

• RTD Input (1):
  • 100 Ohm Platinum, 4-wire
  • Coefficient: 0.00385 Ω/Ω/°C
  • Accuracy: ±0.05°C & 24-bit AD
• Analog Input (1): 4–20 mA, ±0.25%, 24-bit ADC
• Analog Output (1): 4–20 mA, ±0.25%, 16-bit DAC

Power Supply:

• AC: 85–250 VAC, 47–63 Hz, 300–150 mA
• DC: 18–36 Vdc, 600 mA

Communication Ports:

• Serial ports (3):
  • RS-232 (1)
  • RS-485 (1)
  • Selectable RS232/485 (1)
• Ethernet: 10/100 Mb (1)

Approvals:

• UL Listed Class 1, Division 1, Groups C & D
• ATEX Certified Group IIB (Category 2G)

Electromagnetic Compatibility:

• Complies with EMC requirements: 61000-6-2, IEC 61000-6-4
